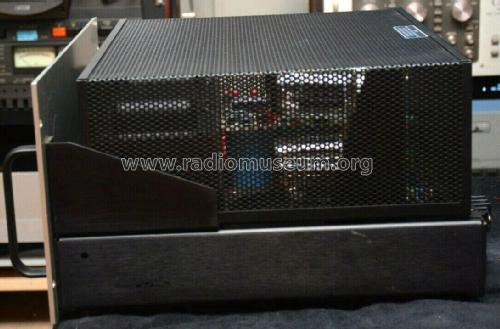

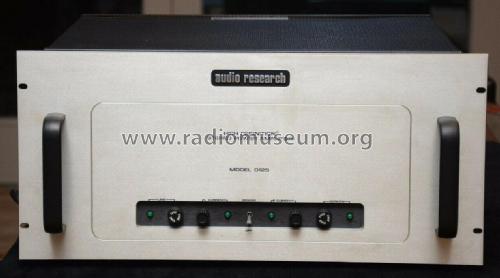

D-125
Audio Research, Plymouth
- Country
- United States of America (USA)
- Manufacturer / Brand
- Audio Research, Plymouth
- Year
- 1988–1991
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 148563
- Number of Tubes
- 8
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 220 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: D-125 - Audio Research, Plymouth
- Shape
- Rack
- Dimensions (WHD)
- 19 x 8.75 x 16.5 inch / 483 x 222 x 419 mm
- Notes

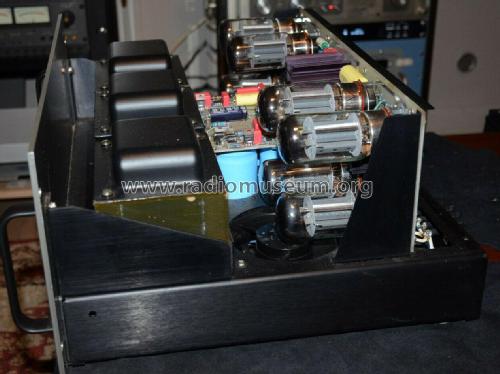

- Hybrid tube/FET stereo power amplifier.
110 Watts per channel, Power bandwidth 10 Hz to 80 KHz (-3 dB points).
Tube complement: (4 matched pairs) 6550.
- Net weight (2.2 lb = 1 kg)
- 42 kg / 92 lb 8.2 oz (92.511 lb)
- Price in first year of sale
- 4,395.00 $
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
