4 Band Portable Radio Receiver AC/DC TK-375 Art.Nr. 0163375

4 Band Portable Radio Receiver AC/DC TK-375 Art.Nr. 0163375; AudioSonic, (ID = 2240742) Radio 4 Band Portable Radio Receiver AC/DC TK-375 Art.Nr. 0163375; AudioSonic, (ID = 2240743) Radio

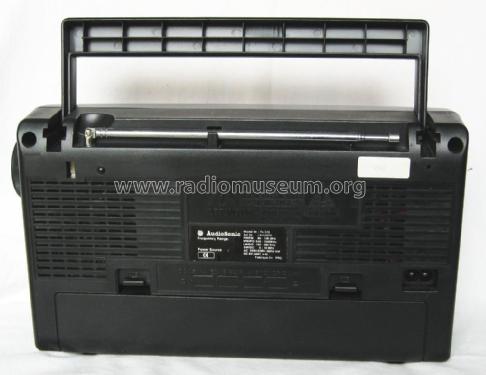

4 Band Portable Radio Receiver AC/DC TK-375 Art.Nr. 0163375; AudioSonic, (ID = 2240744) Radio 4 Band Portable Radio Receiver AC/DC TK-375 Art.Nr. 0163375; AudioSonic, (ID = 2240745) Radio
Use red slider bar for more.
4 Band Portable Radio Receiver AC/DC TK-375 Art.Nr. 0163375; AudioSonic, (ID = 2240742) Radio
AudioSonic,: 4 Band Portable Radio Receiver AC/DC TK-375 Art.Nr. 0163375 [Radio] ID = 2240742 1024x776
Select picture or schematic to display from thumbnails on the right and click for download.
For model 4 Band Portable Radio Receiver AC/DC TK-375 Art.Nr. 0163375, AudioSonic, Amsterdam

Country:  Netherlands
Manufacturer / Brand:  AudioSonic, Amsterdam
Brand

AudioSonic (brand)
Year: 2006 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220-230 / UM1: 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: 4 Band Portable Radio Receiver AC/DC TK-375 Art.Nr. 0163375 - AudioSonic, Amsterdam
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 270 x 160 x 75 mm / 10.6 x 6.3 x 3 inch
Notes

AM/FM Kofferempfänger mit 58cm dreh- und schwenkbarer Teleskopantenne und einklappbarenm Tragegriff oben; Netzschalter, Lautstärke und Tonblende Schieberegler, Bandwahl Schiebeschalter und LED-Abstimmungsanzeige vorn; Abstimmung und 3,5mm Ohrhöreranschluss rechts.

Empfangsbereiche:
UKW: 88 - 108MHz,
KW: 6 - 18MHz,
MW: 540 - 1600kHz,
LW: 150 - 280kHz.

Fabriqué en PRC.

Net weight (2.2 lb = 1 kg) 1.7 kg / 3 lb 11.9 oz (3.744 lb)

Model page created by Holger Struthoff. See "Data change" for further contributors.
