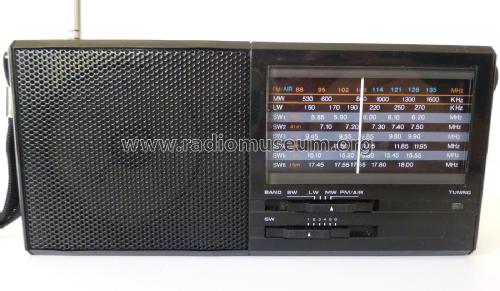

9 Band World Receiver TK-333
AudioSonic, Amsterdam
- Country
- Netherlands
- Manufacturer / Brand
- AudioSonic, Amsterdam
- Year
- 1980 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 274907
-
- Brand: AudioSonic (brand)
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Dry Batteries / AA: 2 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 9 Band World Receiver TK-333 - AudioSonic, Amsterdam
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 180 x 80 x 40 mm / 7.1 x 3.1 x 1.6 inch
- Notes
-
9 Band World Receiver:
- FM-AIR 87.5 ... 135 MHz
- MW 522 ... 1620 kHz
- LW 150 ... 281 kHz
- SW 1 5.85 ... 6.20 MHz (49 m band)
- SW 2 7.10 ... 7.50 MHz (41 m band)
- SW 3 9.45 ... 9.90 MHz (31 m band)
- SW 4 11.45 ... 11.98 MHz (25 m band)
- SW 5 15.10 ... 15.55 MHz (19 m band)
- SW 6 17.45 ... 18.06 MHz (16 m band)
- Author
- Model page created by Jos van den Broek. See "Data change" for further contributors.
