• Country
• Germany

• Manufacturer / Brand
• Lehnert GmbH, (Poppy); Saarbrücken

• Year
• 1972

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 199330

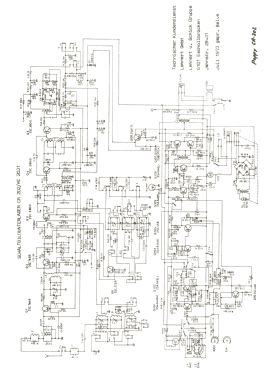

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 16

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220; 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Poppy CR-202 - Lehnert GmbH, Poppy;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 380 x 204 x 88 mm / 15 x 8 x 3.5 inch

• Notes
• Poppy CR-202 Radio-Cassette-Recorder with 16 transistors + 13 Diodes, Auto-Stop, built-in mic. Made in Japan.

• Net weight (2.2 lb = 1 kg)
• 3.250 kg / 7 lb 2.5 oz (7.159 lb)

• Author
• Model page created by Eckhard Wegner. See "Data change" for further contributors.

• Other Models

• Here you find 79 models, 70 with images and 20 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
