Cassette Recorder, FM/MW/LW Radio, 4.5" Black/White TV TC-956F Art.No. 0370606
Audio Sonic Deutschland; Frechen-Königsdorf
- Country
- Germany
- Manufacturer / Brand
- Audio Sonic Deutschland; Frechen-Königsdorf
- Year
- 1980 ??
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 330838
Fonctionne bien

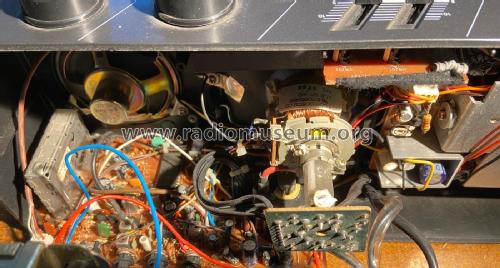

Réparation soudure prise d'antenne
- Number of Tubes
- 1
- Valves / Tubes
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Details
- Cassette-Recorder or -Player
- Power type and voltage

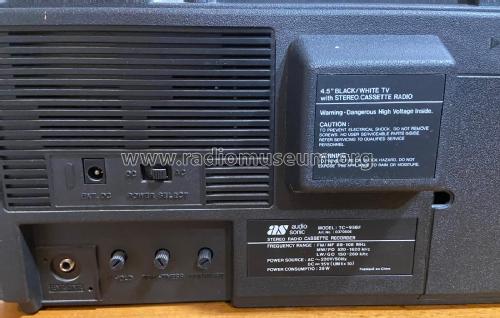

- Line plus power jack, mostly with battery or storage battery / AC 220 / DC 15 / D: 10 x 1,5 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 7 cm = 2.8 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Cassette Recorder, FM/MW/LW Radio, 4.5" Black/White TV TC-956F Art.No. 0370606 - Audio Sonic Deutschland;
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 499 x 150 x 140 mm / 19.6 x 5.9 x 5.5 inch
- Notes
-

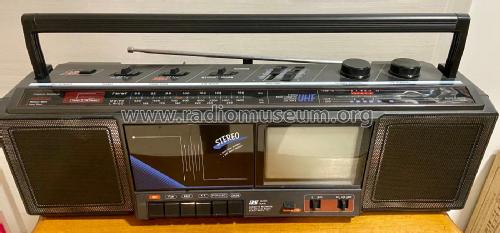

Stereo FM radio with MW and LW. Stereo cassette recorder/player and black/white two normes reception (L and B/G) 4.5" TV VHF+UHF.
AC/DC manual change. FM mono or stereo. Volume left/right independent.
Internal ferrite antenna for AM and telescopic antenna for FM. Input for TV antenna.Fabriqué en Chine.
- Net weight (2.2 lb = 1 kg)
- 3.7 kg / 8 lb 2.4 oz (8.15 lb)
- Author
- Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
