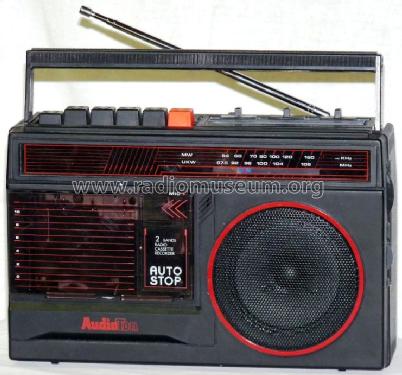

AudioTon Electronics: 2Band Radio Cassette Recorder 4838-6 [Radio] ID = 687031 742x691
Select picture or schematic to display from thumbnails on the right and click for download.
For model 2Band Radio Cassette Recorder 4838-6, AudioTon Electronics Handels GmbH, Wien

Country:  Austria
Manufacturer / Brand:  AudioTon Electronics Handels GmbH, Wien
Year: 1985 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 5:
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220 / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: 2Band Radio Cassette Recorder 4838-6 - AudioTon Electronics Handels
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 265 x 170 x 80 mm / 10.4 x 6.7 x 3.1 inch
Notes 2-Band Radio Casette Recorder, eingebautes Electretmikrofon, Tonschalter, Teleskopantenne 46 cm, Ferritantenne 5,5 cm, LIN-IC TDA1083 (AM-V, AM/FM-ZF+NF).
Net weight (2.2 lb = 1 kg) 1.3 kg / 2 lb 13.8 oz (2.863 lb)
Price in first year of sale 449.00 ATS

Model page created by Peter Roggenhofer † 25.4.18. See "Data change" for further contributors.
