AM-FM-MPX Radio with Cassette Player CCR-308

AM-FM-MPX Radio with Cassette Player CCR-308; AudioTon Grünwald (ID = 1834579) Car Radio AM-FM-MPX Radio with Cassette Player CCR-308; AudioTon Grünwald (ID = 1834580) Car Radio
AM-FM-MPX Radio with Cassette Player CCR-308; AudioTon Grünwald (ID = 1834581) Car Radio
Use red slider bar for more.

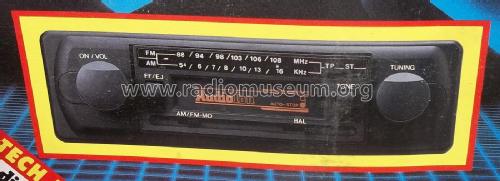

AM-FM-MPX Radio with Cassette Player CCR-308; AudioTon Grünwald (ID = 1834579) Car Radio
AudioTon Grünwald: AM-FM-MPX Radio with Cassette Player CCR-308 [Car Radio] ID = 1834579 1400x507
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM-FM-MPX Radio with Cassette Player CCR-308, AudioTon (Grünwald) Electronics; Wien:
Oldtimerflohmarkt Tulln NÖ 2015

Country:  Austria
Manufacturer / Brand:  AudioTon (Grünwald) Electronics; Wien
Year: 1985 ?? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: AM-FM-MPX Radio with Cassette Player CCR-308 - AudioTon Grünwald Electronics;
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 178 x 44 x 110 mm / 7 x 1.7 x 4.3 inch
Notes

"30 Watt".

Designed in Japan.

Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from AudioTon (Grünwald) Electronics; Wien
Here you find 29 models, 26 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
