Stereo Amplifier LA-1700
Use red slider bar for more.

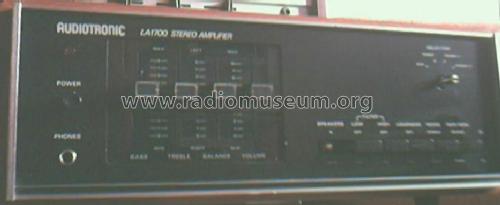

Audiotronic; Japan: Stereo Amplifier LA-1700 [Ampl/Mixer] ID = 164774 933x383
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1970 ?? | Category: Audio Amplifier or -mixer | ||||
| Semiconductors (the count is only for transistors) | Semiconductors present. | ||||
|---|---|---|---|---|---|
| schematic requested | |||||
| Main principle | Audio-Amplification |
|---|---|
| Wave bands | - without |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 100; 117; 220; 240 Volt |
| Loudspeaker | - This model requires external speaker(s). |
| Power out | |
| from Radiomuseum.org | Model: Stereo Amplifier LA-1700 - Audiotronic; Japan |
| Material | Wooden case |
| Shape | Book-shelf unit. |
| Dimensions (WHD) | 352 x 130 x 270 mm / 13.9 x 5.1 x 10.6 inch |
| Notes | Selector: Aux, Tuner, Phono-1, Phono-2. |
| Source of data | - - Data from my own collection |
Model page created by Vitor Oliveira. See "Data change" for further contributors.
