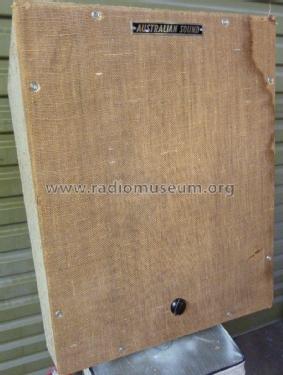

Speaker, School Class Room

Speaker, School Class Room ; Australian Sound (ID = 2406974) Speaker-P Speaker, School Class Room ; Australian Sound (ID = 2406972) Speaker-P
Speaker, School Class Room ; Australian Sound (ID = 2406973) Speaker-P
Use red slider bar for more.
Speaker, School Class Room ; Australian Sound (ID = 2406974) Speaker-P
Australian Sound: Speaker, School Class Room [Speaker-P] ID = 2406974 850x1043
Select picture or schematic to display from thumbnails on the right and click for download.
For model Speaker, School Class Room, Australian Sound Television Co. Pty. Ltd.; Fitzroy, VIC:
AS Class Room Speaker Side

Country:  Australia
Manufacturer / Brand:  Australian Sound Television Co. Pty. Ltd.; Fitzroy, VIC
Year: 1965 ?? Category: Loudspeaker, headphone or earphone
Main principle Audio-Amplification
Details
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: Speaker, School Class Room - Australian Sound Television Co
Material Wooden case
Dimensions (WHD) 360 x 520 x 360 mm / 14.2 x 20.5 x 14.2 inch
Notes

This was equipped with a Rola 8M (public address version) with constant voltage line transformer

Model page created by Joshua Boxer. See "Data change" for further contributors.
