Diamond Dot DJR

Diamond Dot DJR; Astor brand, Radio (ID = 1834219) Car Radio
Use red slider bar for more.
Diamond Dot DJR; Astor brand, Radio (ID = 1834219) Car Radio
Astor brand, Radio: Diamond Dot DJR [Car Radio] ID = 1834219 939x991
Select picture or schematic to display from thumbnails on the right and click for download.
For model Diamond Dot DJR, Astor (brand), Radio Corporation Pty., Ltd.; Melbourne:

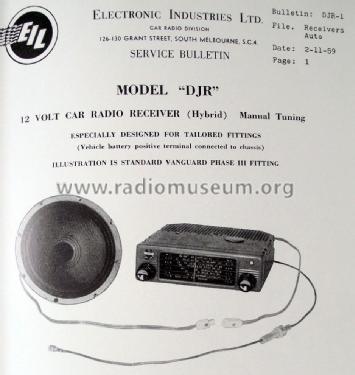

EIL Service Bulletin, DJR-1, 2-11-59

Country:  Australia
Manufacturer / Brand:  Astor (brand), Radio Corporation Pty., Ltd.; Melbourne
alternative name

Radio Corp.of Australia
Year: 1959/1960 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 4: 6ES6 12AD6 6ET6 12FK6
Semiconductors (the count is only for transistors) 2: CK874 2N301 or. AT1138
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Diamond Dot DJR - Astor brand, Radio Corporation
Material Metal case
Shape Chassis only or for «building in»
Notes

Diamond Dot hybrid manual car radio.

Tailored fittings to suit Ford MkII Zephyr/Consul, Morris Oxford Series V, Vanguard Series III, Vauxhall FD, Austin A40, Austin Lancer Series II, Morris Major Ser II & Triumph Herald.

See also Air Chief version of this car radio.

Price in first year of sale 52.50 AUS £
Mentioned in EIL Service Bulletin, DJR-1, 2-11-59
Literature/Schematics (1) - - Manufacturers Literature (EIL Service Bulletin DJR-1, 2/11/1959 & DJR-2, 5/2/1960.)
Literature/Schematics (2) J.R. Publications Car Radio Service Handbook (Pages A12 & A14.)

Model page created by a member from A. See "Data change" for further contributors.
