| Main principle |
Superheterodyne (common); ZF/IF 455 kHz
|
| Tuned circuits |
6 AM circuit(s) |
| Wave bands |
Broadcast and Short Wave (SW). |
| Details |
|
| Power type and voltage |
AC/DC-set / 117 Volt |
| Loudspeaker |
Electro Magnetic Dynamic LS (moving-coil with field excitation coil) |
| Power out |
|
| from Radiomuseum.org |
Model: 107-I - Autocrat Radio Co.; Chicago IL |
| Notes |
Built-in loop antenna; ballast tube "BM42B". |
| External source of data |
Ernst Erb |

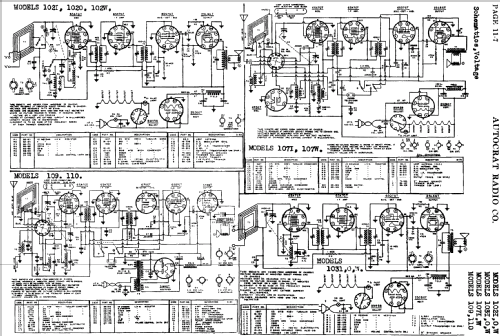

| Circuit diagram reference |
Rider's Perpetual, Volume 11 = ca. 1940 and before |
