Autocrat 6
Autocrat Radio Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Autocrat Radio Co.; Chicago (IL)
- Year
- 1933/1934
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 33643

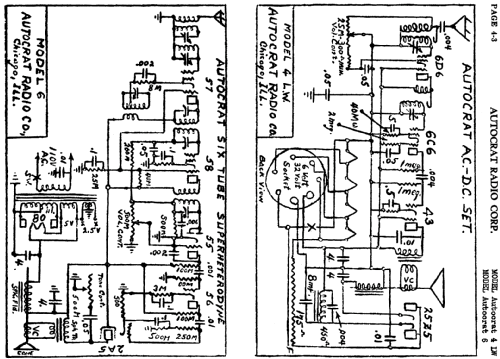

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Autocrat 6 - Autocrat Radio Co.; Chicago IL
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 12 x 14 x 9 inch / 305 x 356 x 229 mm
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 4 = ca. 1934 and before
- Literature/Schematics (1)
- Radio Retailing (Radio & Television R.) (October 1933 issue, page 20)
