• Country
• Canada

• Manufacturer / Brand
• Automatic Radio of Canada Ltd.; Toronto

• Year
• 1954 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 342754

• Number of Tubes
• 5

• Valves / Tubes

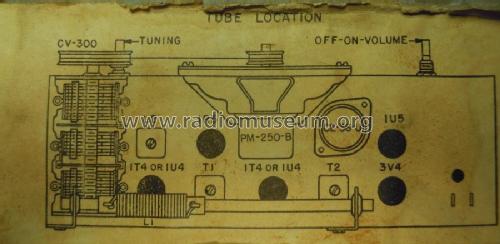

• 1T4 or 1U4 1R5 1T4 or 1U4 1U5 3V4

• Number of Transistors

• Semiconductors
• Selenium-Rectifier

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Line / Batteries (any type) / Either 9 & 90 or AC or DC 117 Volt Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.25 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: P-64U - Automatic Radio of Canada Ltd.

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 310 x 230 x 130 mm / 12.2 x 9.1 x 5.1 inch

• Notes

• Schematic appears identical to the Canadian Firestone 4-C-24





• Author
• Model page created by Rick Williams. See "Data change" for further contributors.
