Autovox Five Two Unit 6 volt.

Autovox Radio; Sydney

  • Year
  • 1954 ?
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 195711

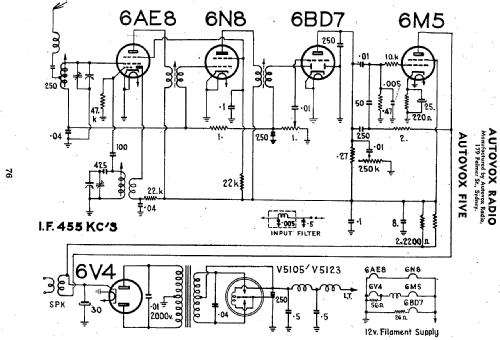

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Autovox Five [Two Unit 6 volt.] - Autovox Radio; Sydney
  • Circuit diagram reference
  • Australian Official Radio Service Manual Vol. XIV
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
