Universal AvoMinor (AVO Minor Meter) Model 1

Universal AvoMinor Model 1; AVO Ltd.; London (ID = 318078) Equipment Universal AvoMinor Model 1; AVO Ltd.; London (ID = 318864) Equipment

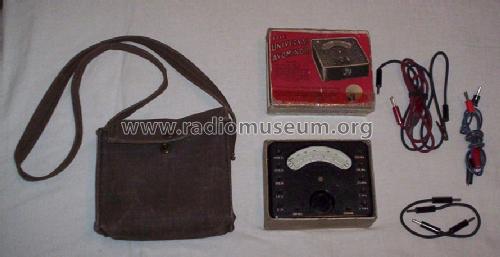

Universal AvoMinor Model 1; AVO Ltd.; London (ID = 318865) Equipment Universal AvoMinor Model 1; AVO Ltd.; London (ID = 1257069) Equipment
Universal AvoMinor Model 1; AVO Ltd.; London (ID = 1378163) Equipment Universal AvoMinor Model 1; AVO Ltd.; London (ID = 1378164) Equipment
Universal AvoMinor Model 1; AVO Ltd.; London (ID = 1378165) Equipment
Use red slider bar for more.
Universal AvoMinor Model 1; AVO Ltd.; London (ID = 318078) Equipment
AVO Ltd.; London: Universal AvoMinor Model 1 [Equipment] ID = 318078 593x532
Select picture or schematic to display from thumbnails on the right and click for download.
For model Universal AvoMinor (AVO Minor Meter) Model 1, AVO Ltd.; London

Country:  Great Britain (UK)
Manufacturer / Brand:  AVO Ltd.; London
Year: 1934 ?? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Dry Batteries / 1.5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Universal AvoMinor Model 1 - AVO Ltd.; London
Material Moulded (Bakelite or Plastics)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Notes

AC/DC Volt-Ohm Meter.

Universal AvoMinor Model 1 with 22 ranges.

It was designed to use the obsolete Eveready U10, 1.5V battery.

Ranges;

DC 5, 25, 100, 250, 500 volts - sensitivity 2.5
DC 2.5, 5, 25, 100, 500 mA
AC 5, 25, 100, 250, 500 volts - sensitivity 2.5 mA
Non-linear scale for 5 volts
R 20k ohm (400 ohm center)
(Some had 500, 1500 volt ranges instead of 250, 500)

Mentioned in -- Original prospect or advert

Model page created by Mario Coelho. See "Data change" for further contributors.
