Stereo Component System S-14 SV-14 Deluxe Furniture Stand

AWA-Thorn Consumer Products Pty. Ltd.; Rydalmere (NSW)

Data
Forum
Pictures
Collections

  • Year
  • 1982
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 307535

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Record Player + Tape Recorder
  • Power type and voltage
  • Alternating Current supply (AC) / 50 Hz, 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Stereo Component System S-14 [SV-14 Deluxe Furniture Stand] - AWA-Thorn Consumer Products
  • Shape
  • Console: Chairside Radio.
  • Dimensions (WHD)
  • 480 x 775 x 395 mm / 18.9 x 30.5 x 15.6 inch
  • Notes

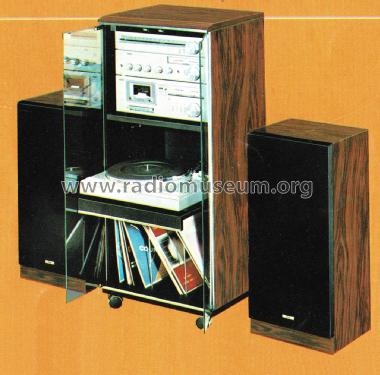

  • S-14 AWA Stereo Audio System

    Superb 6-piece audio system featuring LED indicators, slide-out record player shelf, glass doors, castors, ample record storage. Belt-drive turntable with magnetic cartridge, auto return and auto cut functions. AM/FM stereo with 25 watts RMS per channel, loudness control, microphone mixing circuit, bass and treble controls. Front load ™Dolby Stereo Cassette recorder, soft-eject door, 'Metal' tape facility, pause control, tape counter. Bass reflex 2-way speaker system with cone types 200 mm woofer, and 66 mm tweeter.

    System consists of:

    STA-14, AM/FM stereo tuner amplifier (400 x 167 x 252 mm, WHD, 5.3 kg)
    SD-14, stereo cassette deck (400 x 118 x 243 mm, WHD, 4.3 kg)
    SP-14, stereo record player system (432 x 135 x 355.5 mm, WHD, 4.5 kg)
    SE-14, 3-way speaker system (325 x 700 x 280 mm, WHD, 9.1 kg)
    SV-14, deluxe furniture stand (480 x 775 x 395 mm, WHD)

    See also S14 System with SV-14A Furniture Stand

  • Price in first year of sale
  • 903.00 AUS $
  • Literature/Schematics (1)
  • -- Original prospect or advert (Product sheet/brochure)
  • Author
  • Model page created by Martin Kent. See "Data change" for further contributors.
