• Year
  • 1978–1980
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 211093

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

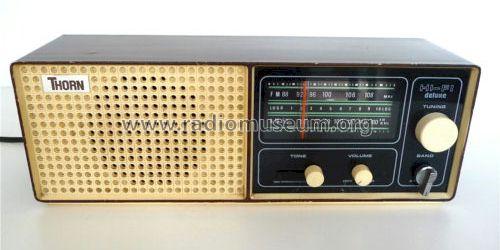

  • Model: Thorn Hi-Fi deluxe 1100 - AWA-Thorn Consumer Products
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 340 x 130 x 100 mm / 13.4 x 5.1 x 3.9 inch
  • Notes

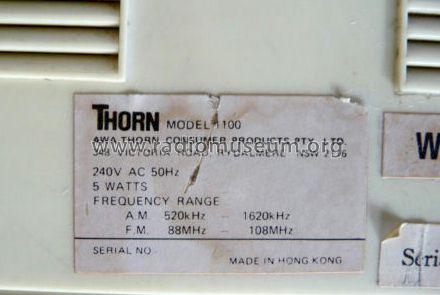

  • Thorn Model 1100

    AM/FM AC mantel radio. Features: 2-band AM/FM, volume and slider tone control, woodgrain finish and AC operation. (MINGAY'S PRICE SERVICE)

    5 W power consumption, made in Hong-Kong.

  • Price in first year of sale
  • 26.50 AUS $
