Nagimaut 12-100E

Nagimaut 12-100E; AWEH Transformatoren (ID = 386570) Power-S Nagimaut 12-100E; AWEH Transformatoren (ID = 386571) Power-S
Nagimaut 12-100E; AWEH Transformatoren (ID = 386572) Power-S
Use red slider bar for more.
Nagimaut 12-100E; AWEH Transformatoren (ID = 386570) Power-S
AWEH Transformatoren: Nagimaut 12-100E [Power-S] ID = 386570 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Nagimaut 12-100E, AWEH Transformatoren GmbH; Hamburg

Country:  Germany
Manufacturer / Brand:  AWEH Transformatoren GmbH; Hamburg
Year: 1965 ?? Category: Power supply/conditioner or battery or charger
Wave bands - without
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Nagimaut 12-100E - AWEH Transformatoren GmbH;
Material Metal case
Dimensions (WHD) 215 x 155 x 215 mm / 8.5 x 6.1 x 8.5 inch

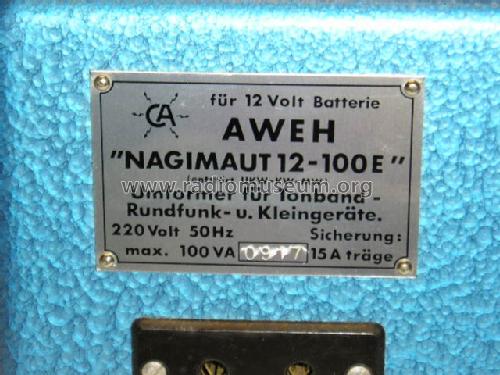

Notes Nagimaut = Netz-Anschluß-Gerät im Auto. Umformer für Tonband-, Rundfunk- und Kleingeräte. Eingang 12V=, Ausgang 220V~. Leistung umschaltbar 10-35, 36-55, 56-80 und 81-100 VA.
Net weight (2.2 lb = 1 kg) 8.7 kg / 19 lb 2.6 oz (19.163 lb)
Source of data - - Data from my own collection

Model page created by Andreas Sommerer. See "Data change" for further contributors.
