462 AC/DC

462 AC/DC; Balcombe Ltd., Brand (ID = 1334470) Radio

462 AC/DC; Balcombe Ltd., Brand (ID = 1334471) Radio
462 AC/DC; Balcombe Ltd., Brand (ID = 1547207) Radio 462 AC/DC; Balcombe Ltd., Brand (ID = 1547208) Radio
462 AC/DC; Balcombe Ltd., Brand (ID = 1547210) Radio 462 AC/DC; Balcombe Ltd., Brand (ID = 1547215) Radio
462 AC/DC; Balcombe Ltd., Brand (ID = 1547219) Radio 462 AC/DC; Balcombe Ltd., Brand (ID = 1974969) Radio
462 AC/DC; Balcombe Ltd., Brand (ID = 1974971) Radio 462 AC/DC; Balcombe Ltd., Brand (ID = 1974972) Radio
462 AC/DC; Balcombe Ltd., Brand (ID = 1974973) Radio 462 AC/DC; Balcombe Ltd., Brand (ID = 1974977) Radio
Use red slider bar for more.
462 AC/DC; Balcombe Ltd., Brand (ID = 1547207) Radio
Balcombe Ltd., Brand: 462 AC/DC [Radio] ID = 1547207 645x407
Select picture or schematic to display from thumbnails on the right and click for download.

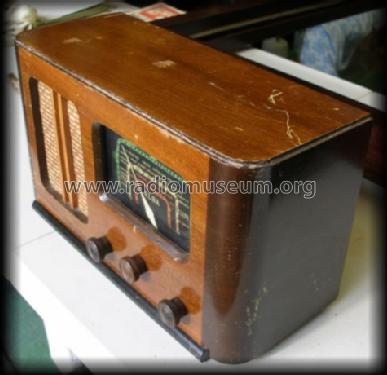

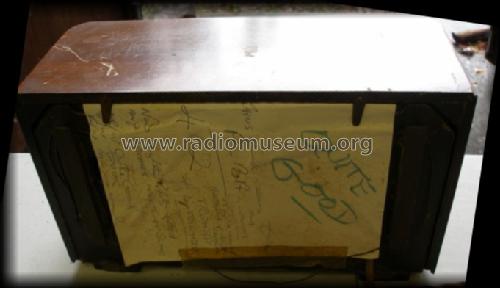

For model 462 AC/DC, Balcombe Ltd., (Brand: Alba), London:
Alba 462. Ebay October 2013 item 251367147661

Country:  Great Britain (UK)
Manufacturer / Brand:  Balcombe Ltd., (Brand: Alba), London
Brand

Alba
Year: 1947 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: CCH35 EF39 EBC33 CL33 1D5_rectifier
Main principle Superheterodyne (common); ZF/IF 460 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 100-120; 200-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.5 cm = 4.9 inch
Power out
from Radiomuseum.org Model: 462 AC/DC - Balcombe Ltd., Brand: Alba,
Material Wooden case
Dimensions (WHD) 14.5 x 8.5 x 6 inch / 368 x 216 x 152 mm
Notes

Line cord with 600 ohms or 600+100 ohms built-in resistance for 220 or 240 V. Fixed Antenna of 8 meters length

Cavo di alimentazione con incorporate resistenze da 600 +100 Ohm per tensioni di 220 e 240 V. Antenna fissa della lunghezza di 8 metri

Net weight (2.2 lb = 1 kg) 4.4 kg / 9 lb 11.1 oz (9.692 lb)
Source of data Trader Service Sheet (suppl. of Wireless & El. Trader, etc.)

Model page created by Ernst Röggla. See "Data change" for further contributors.



All listed radios etc. from Balcombe Ltd., (Brand: Alba), London
Here you find 231 models, 104 with images and 165 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
