Leslie Tone Cabinet BL-1

Leslie Tone Cabinet BL-1; Baldwin Piano Co.; (ID = 1619678) Ampl/Mixer Leslie Tone Cabinet BL-1; Baldwin Piano Co.; (ID = 1619680) Ampl/Mixer
Leslie Tone Cabinet BL-1; Baldwin Piano Co.; (ID = 1619682) Ampl/Mixer Leslie Tone Cabinet BL-1; Baldwin Piano Co.; (ID = 1619684) Ampl/Mixer
Leslie Tone Cabinet BL-1; Baldwin Piano Co.; (ID = 1619685) Ampl/Mixer Leslie Tone Cabinet BL-1; Baldwin Piano Co.; (ID = 1619686) Ampl/Mixer
Leslie Tone Cabinet BL-1; Baldwin Piano Co.; (ID = 1619688) Ampl/Mixer Leslie Tone Cabinet BL-1; Baldwin Piano Co.; (ID = 1619987) Ampl/Mixer
Leslie Tone Cabinet BL-1; Baldwin Piano Co.; (ID = 1619989) Ampl/Mixer Leslie Tone Cabinet BL-1; Baldwin Piano Co.; (ID = 1619992) Ampl/Mixer
Use red slider bar for more.
Leslie Tone Cabinet BL-1; Baldwin Piano Co.; (ID = 1619678) Ampl/Mixer
Baldwin Piano Co.;: Leslie Tone Cabinet BL-1 [Ampl/Mixer] ID = 1619678 933x1046
Select picture or schematic to display from thumbnails on the right and click for download.
For model Leslie Tone Cabinet BL-1, Baldwin Piano Co.; Cincinnati, Ohio:
aus ebay, #151205562629, Verkäufer musicallan_lee

Country:  United States of America (USA)
Manufacturer / Brand:  Baldwin Piano Co.; Cincinnati, Ohio
Year: 1965 ?? Category: Audio Amplifier or -mixer

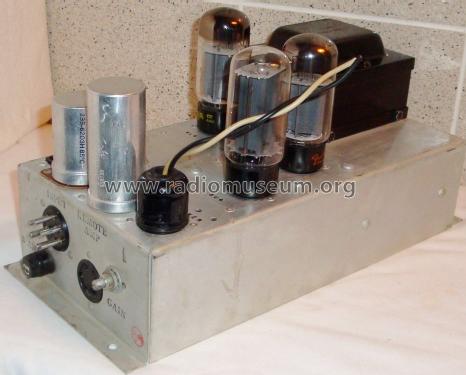

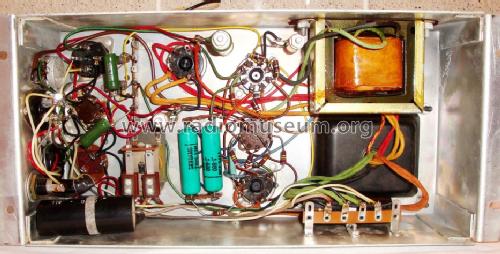

Valves / Tubes 4: 12AX7 6L6GC 6L6GC 5U4GB
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 25 W (unknown quality)
from Radiomuseum.org Model: Leslie Tone Cabinet BL-1 - Baldwin Piano Co.; Cincinnati,
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 27 x 30 x 18 inch / 686 x 762 x 457 mm
Notes

Speaker cabinet for electric organ, with motor-driven rotating drum.

Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
