For model Balkeit F, Fansteel Products (Pfanstiehl, Pfansteihl, Balkite, Balkeit); Chicago

Country:  United States of America (USA)
Manufacturer / Brand:  Fansteel Products (Pfanstiehl, Pfansteihl, Balkite, Balkeit); Chicago
alternative name

Balkeit || First National
Brand
Overtone
Year: 1929 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 227 227 227 226 227 245 245 280
Main principle TRF without regeneration; Neutrodyne
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Balkeit F - Fansteel Products Pfanstiehl,
Material Metal case
Shape Chassis only or for «building in»
Notes Balkeit, Balkite, Pfanstiehl are put together to Fansteel. One dial (primary tuning control knob)
Price in first year of sale 75.00 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932

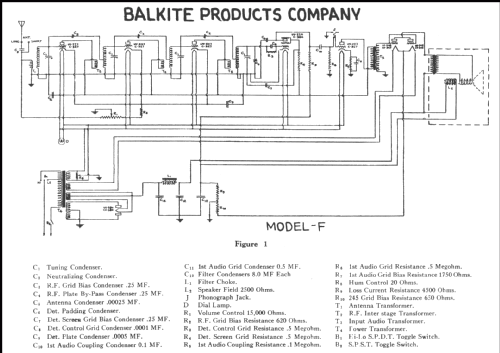

Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Rider's Perpetual, Volume 3 = 1933 and before
