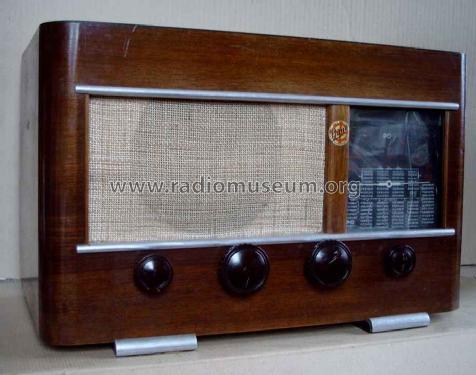

5B8; Bami, Baerr & Minder (ID = 1400796) Radio
Bami, Baerr & Minder: 5B8 [Radio] ID = 1400796 933x734
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5B8, Bami, Baerr & Minder, Manufacture Alsacienne d'Appareils Radiophoniques; Mulhouse:
Skala gesprungen

Country:  France
Manufacturer / Brand:  Bami, Baerr & Minder, Manufacture Alsacienne d'Appareils Radiophoniques; Mulhouse
Year: 1939 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6K7 6E8 6F6G 5Y3GB 6E5
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-130 ; 130-150 ; 220-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20.5 cm = 8.1 inch
Power out
from Radiomuseum.org Model: 5B8 - Bami, Baerr & Minder,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 495 x 318 x 320 mm / 19.5 x 12.5 x 12.6 inch
Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)

Model page created by Manfred Rathgeb. See "Data change" for further contributors.



All listed radios etc. from Bami, Baerr & Minder, Manufacture Alsacienne d'Appareils Radiophoniques; Mulhouse
Here you find 1 models, 1 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
