Djinn 2G M
Use red slider bar for more.

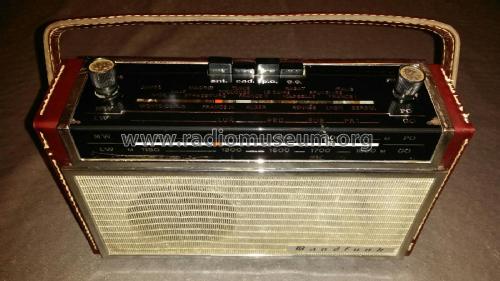

Bandfunk marque -: Djinn 2G M [Radio] ID = 1636326 933x620

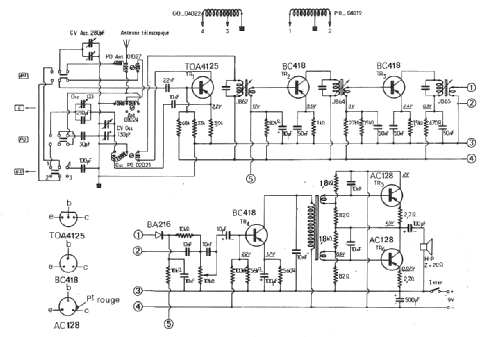

Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1970 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 6: TOA4125 BC418 BC418 BC418 AC128 AC128 BA216 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 455 kHz |
|---|---|
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | Dry Batteries / 2 x 4,5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch |
| Power out | |
| from Radiomuseum.org | Model: Djinn 2G M - Bandfunk marque - voir aussi S |
| Material | Leather / canvas / plastic - over other material |
| Shape | Portable set > 8 inch (also usable without mains) |
| Dimensions (WHD) | 250 x 175 x 65 mm / 9.8 x 6.9 x 2.6 inch |
| Notes | Modèle identique à plusieurs modèles de marques differentes. |
| Net weight (2.2 lb = 1 kg) | 1.1 kg / 2 lb 6.8 oz (2.423 lb) |
Model page created by Jean-Louis Buton. See "Data change" for further contributors.
