• Year
  • 1974 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 304496

 Technical Specifications

  • Number of Transistors
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 480 kHz
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Dry Batteries / 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

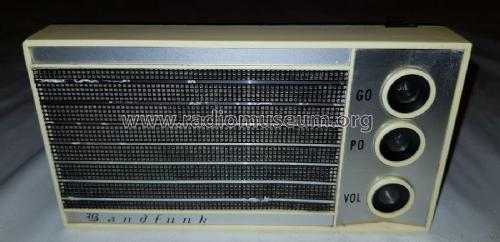

  • Model: Mini 74 - Bandfunk marque - voir aussi S
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 145 x 75 x 35 mm / 5.7 x 3 x 1.4 inch
  • Author
  • Model page created by Didier Tholomier. See "Data change" for further contributors.
