• Country
• South Africa

• Manufacturer / Brand
• Barlow-Wadley Barlow's; South Africa

• Year
• 1968 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 338561

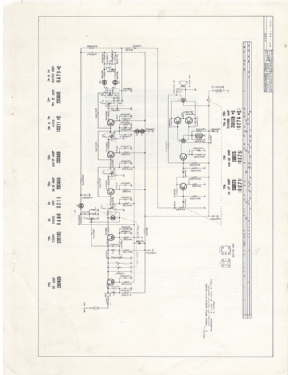

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• 2SC429 2SC185 2SC469 2SC469 2SC469 2SB173 2SB175 2SB178 2SB178 OA90 SC-15 1S1211 1S1211 OA79 OA79

• Main principle
• Superhet with RF-stage; ZF/IF 10700 kHz; 3 AF stage(s)

• Tuned circuits
• 9 FM circuit(s)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Dry Batteries / C: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 0.45 W (0.7 W max.)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: National Panasonic FM Portable RF-641 - Barlow-Wadley Barlow's; South

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 243 x 178 x 84 mm / 9.6 x 7 x 3.3 inch

• Notes

• National Panasonic FM Portable.

  Made under license to Matsushita Electric Industries, Japan.

• Net weight (2.2 lb = 1 kg)
• 3 lb 10 oz (3.625 lb) / 1.646 kg

• Literature/Schematics (1)

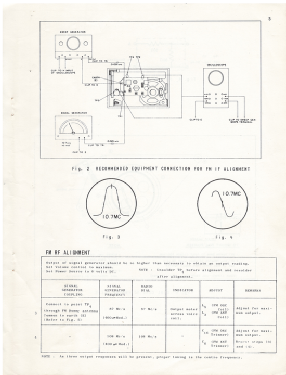

• - - Manufacturers Literature (Model RF 641 Radio Service Manual)

• Author
• Model page created by Steve Rich. See "Data change" for further contributors.

• Other Models

• Here you find 16 models, 16 with images and 6 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Barlow-Wadley Barlow's; South Africa
