AC Superhet
Barton's (Radio) Ltd; London.
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Barton's (Radio) Ltd; London.
- Year
- 1954 ??
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 159081

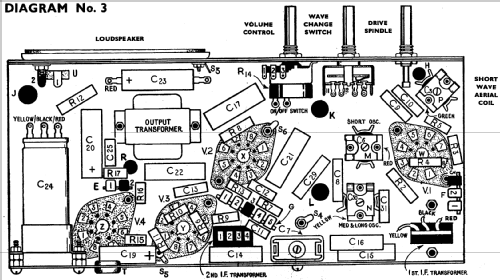

Picture from manufacturers manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: AC Superhet - Barton's Radio Ltd; London.
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 11.75 x 6.75 x 6 inch / 298 x 171 x 152 mm
- Notes
- Case similar to Pilot "Little Meastro" which was used by several kit manufacturers including Premier. The kit was advertised in Practical Wireless during the 1950's.
- Price in first year of sale
- 8.00 GBP
- Source of data
- -- Schematic
- Literature/Schematics (1)
- Paul Stennings DVD
- Author
- Model page created by Keith Staines. See "Data change" for further contributors.
