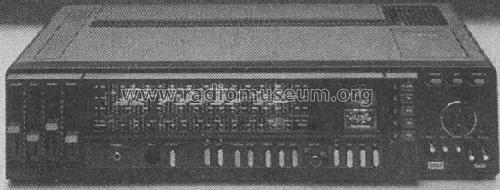

FM-Stereo/FM-AM Receiver 8425; BASF, Badische (ID = 407783) Radio FM-Stereo/FM-AM Receiver 8425; BASF, Badische (ID = 1597272) Radio
FM-Stereo/FM-AM Receiver 8425; BASF, Badische (ID = 1597276) Radio FM-Stereo/FM-AM Receiver 8425; BASF, Badische (ID = 1597331) Radio
FM-Stereo/FM-AM Receiver 8425; BASF, Badische (ID = 1849141) Radio FM-Stereo/FM-AM Receiver 8425; BASF, Badische (ID = 1849142) Radio
Use red slider bar for more.
FM-Stereo/FM-AM Receiver 8425; BASF, Badische (ID = 1849140) Radio
BASF, Badische: FM-Stereo/FM-AM Receiver 8425 [Radio] ID = 1849140 1200x422
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM-Stereo/FM-AM Receiver 8425, BASF, Badische Anilin- & Soda-Fabrik; Ludwigshafen

Country:  Germany
Manufacturer / Brand:  BASF, Badische Anilin- & Soda-Fabrik; Ludwigshafen
Year: 1975–1978 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: FM-Stereo/FM-AM Receiver 8425 - BASF, Badische Anilin- & Soda-
Material Modern plastics (no Bakelite or Catalin)
Shape Book-shelf unit.
Dimensions (WHD) 580 x 130 x 300 mm / 22.8 x 5.1 x 11.8 inch
Notes Stereo-Steuergerät; NF-Verstärker mit 2 Endstufen je 25 W (Sinus).
Net weight (2.2 lb = 1 kg) 14 kg / 30 lb 13.4 oz (30.837 lb)
Price in first year of sale 948.00 DM
Source of data Handbuch VDRG 1975/1976
Mentioned in Handbuch VDRG 1976/1977 (und 1977/78)

Model page created by Bernd P. Kieck. See "Data change" for further contributors.
