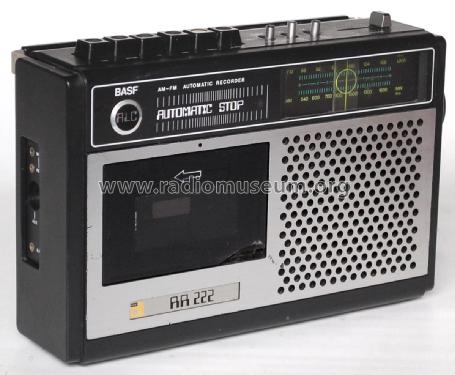

AM-FM Automatic Recorder RR 222

AM-FM Automatic Recorder RR 222; BASF, Badische (ID = 2034706) Radio AM-FM Automatic Recorder RR 222; BASF, Badische (ID = 2034708) Radio
AM-FM Automatic Recorder RR 222; BASF, Badische (ID = 2034707) Radio AM-FM Automatic Recorder RR 222; BASF, Badische (ID = 2034709) Radio
AM-FM Automatic Recorder RR 222; BASF, Badische (ID = 2034710) Radio AM-FM Automatic Recorder RR 222; BASF, Badische (ID = 2034711) Radio
AM-FM Automatic Recorder RR 222; BASF, Badische (ID = 2034712) Radio AM-FM Automatic Recorder RR 222; BASF, Badische (ID = 441159) Radio
AM-FM Automatic Recorder RR 222; BASF, Badische (ID = 441160) Radio AM-FM Automatic Recorder RR 222; BASF, Badische (ID = 441161) Radio
Use red slider bar for more.
AM-FM Automatic Recorder RR 222; BASF, Badische (ID = 2034706) Radio
BASF, Badische: AM-FM Automatic Recorder RR 222 [Radio] ID = 2034706 1200x1087
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM-FM Automatic Recorder RR 222, BASF, Badische Anilin- & Soda-Fabrik; Ludwigshafen

Country:  Germany
Manufacturer / Brand:  BASF, Badische Anilin- & Soda-Fabrik; Ludwigshafen
Year: 1975–1977 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player

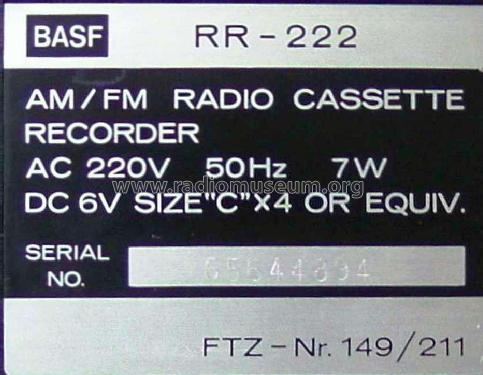

Power type and voltage Line plus power jack, mostly with battery or storage battery / 220 / 6 / C: 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9 cm = 3.5 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: AM-FM Automatic Recorder RR 222 - BASF, Badische Anilin- & Soda-
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 275 x 180 x 75 mm / 10.8 x 7.1 x 3 inch
Notes

BASF Radio-Recorder RR222.
Automatische Aussteuerung; mit Schlummerschalter: die Laufzeit der Cassette bestimmt den Ausschaltzeitpunkt des Radioteils.

Anschlüsse für 6 V-Netzgerät, ext. Mikrofon mit FB ("remote"), Kopfhörer (siehe Bilder).

Net weight (2.2 lb = 1 kg) 2.2 kg / 4 lb 13.5 oz (4.846 lb)
Source of data Handbuch VDRG 1975/1976
Mentioned in Handbuch VDRG 1976/1977

Model page created by Eero Ukkola. See "Data change" for further contributors.
