• Country
• Germany

• Manufacturer / Brand
• BASF, Badische Anilin- & Soda-Fabrik; Ludwigshafen

• Year
• 1971–1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28477

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

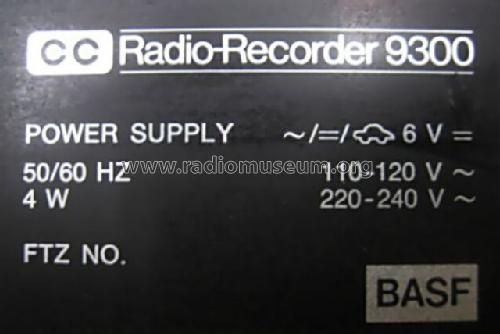

• Power type and voltage
• Line / Batteries (any type) / 110/220 / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: CC Radio-Recorder 9300 - BASF, Badische Anilin- & Soda-

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 299 x 251 x 90 mm / 11.8 x 9.9 x 3.5 inch

• Notes
• Instrument für Batteriespannungskontrolle.

• Net weight (2.2 lb = 1 kg)
• 3.4 kg / 7 lb 7.8 oz (7.489 lb)

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1971/1972 / Radiokatalog Band 2, Ernst Erb
