Anodenbatterie 84R12

Anodenbatterie 84R12; Batterien- u. (ID = 242315) Power-S
Use red slider bar for more.
Anodenbatterie 84R12; Batterien- u. (ID = 242315) Power-S

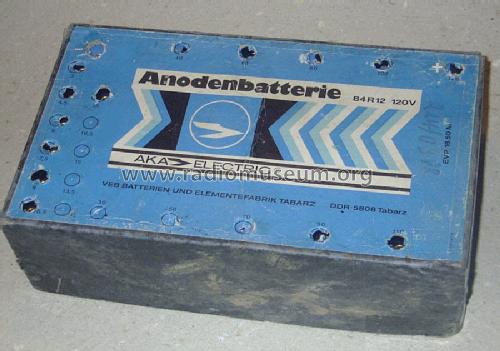

Batterien- u.: Anodenbatterie 84R12 [Power-S] ID = 242315 900x633
Select picture or schematic to display from thumbnails on the right and click for download.
For model Anodenbatterie 84R12, Batterien- u. Elementefabrik Tabarz, VEB; (Ostd.)

Country:  Germany
Manufacturer / Brand:  Batterien- u. Elementefabrik Tabarz, VEB; (Ostd.)
Year: 1957 ? Category: Power supply/conditioner or battery or charger
Wave bands - without
Details
Power type and voltage Is a battery or storage battery / 120 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Anodenbatterie 84R12 - Batterien- u. Elementefabrik
Dimensions (WHD) 260 x 75 x 152 mm / 10.2 x 3 x 6 inch
Notes 120 V, mit 20 Anzapfungen, enthält 84 Kohle-Zink-Zellen, wie sie 3x in der Flachbatterie enthalten sind. Daher kann diese Batterie mit 28 Flachbatterien neu bestückt werden.
Net weight (2.2 lb = 1 kg) 3.4 kg / 7 lb 7.8 oz (7.489 lb)
Price in first year of sale 19.00 DM

Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
