5-Valve Dual Wave Mantel M55DB
Batyphone, C.S. Baty & Co.; Perth (WA)
- Country
- Australia
- Manufacturer / Brand
- Batyphone, C.S. Baty & Co.; Perth (WA)
- Year
- 1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 255371

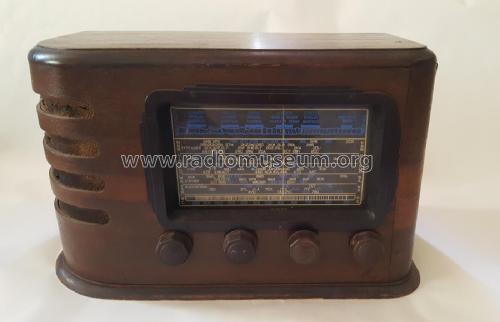

Front View

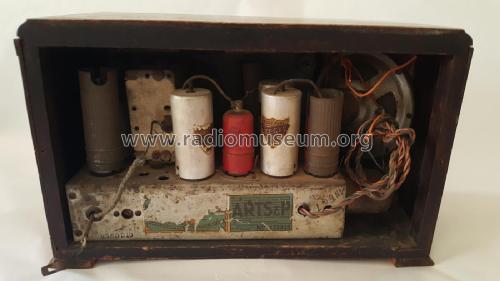

Back View
Dial
Western Mail (Perth), 14 April 1949
Western Mail (Perth), 28 Jul 1949
Western Mail (Perth), 14 April 1949
- Number of Tubes
- 5
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Dry Batteries
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 5-Valve Dual Wave Mantel M55DB - Batyphone, C.S. Baty & Co.;
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
-
Five-valve dual wave mantel set, operated with three Eveready new type plug-in dry cells.
Price £25/19/6, batteries not included.
- Price in first year of sale
- 25.98 Aus£
- Mentioned in
- Western Mail (Perth), 28 Jul 1949
