Batyphone 4 Valve Receiver
Batyphone, C.S. Baty & Co.; Perth (WA)
- Country
- Australia
- Manufacturer / Brand
- Batyphone, C.S. Baty & Co.; Perth (WA)
- Year
- 1928 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 255312
Receiver on original stand
From the Neal Korff collection.
Batyphone Model 539
From the Neal Korff collection.
From the Neal Korff collection.
From the Neal Korff collection.
From the Neal Korff collection.
From the Neal Korff collection.

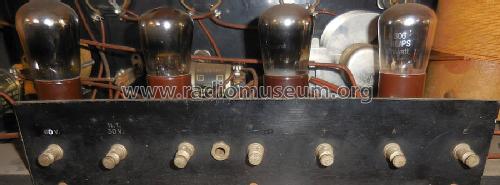

Rear power connections
- Number of Tubes
- 4
- Main principle
- TRF with regeneration
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage and/or dry batteries / 4 & ? Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org
- Model: Batyphone 4 Valve Receiver - Batyphone, C.S. Baty & Co.;
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 675 x 280 x 295 mm / 26.6 x 11 x 11.6 inch
- Notes
-
Radio was supplied with BTH C3 14" horn speaker.
- Author
- Model page created by Gary Cowans. See "Data change" for further contributors.
