Multiformat Tonfilm-Projektor T 192
Bauer, Eugen; Stuttgart
- Country
- Germany
- Manufacturer / Brand
- Bauer, Eugen; Stuttgart
- Year
- 1978 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 300924
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Special Tape or Cassette-Format
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10.5 cm = 4.1 inch
- Power out
- 10 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Multiformat Tonfilm-Projektor T 192 - Bauer, Eugen; Stuttgart
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 190 x 230 x 293 mm / 7.5 x 9.1 x 11.5 inch
- Notes
-

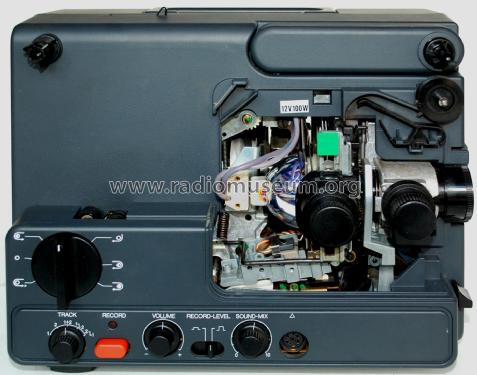

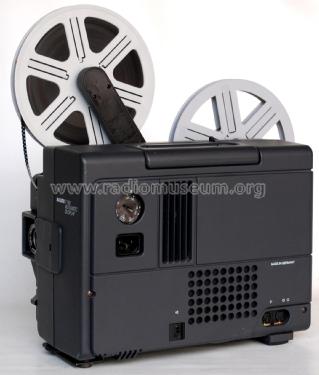

T 192 von Bauer ist ein Multiformat Film-Projektor für Super-8 und Normal-8 Filme.
Der Projektor ist für den Filmtransfer mit einem Camcorder modifiziert und mit der
Filmtransfer-LED-Lampe 4002 und dem Filmtransfer-Objektiv 5001 ausgestattet.Einige technische Daten:
Ein-Knopf-Formatumstellung mit Leuchtanzeige;
Automatische Filmeinfädelung;
Vorführgeschwindigkeit, 16 B/s und 24 B/s;
Spulenkapazität 180 m;
Projektor-Lampe: 12 V / 100 W;
Made in Italy.Bedienung:
Zentralschalter für sämtliche Filmlauffunktionen;
Höhenverstellung mit Rändelrad;
Zentrale Bildstrichverstellung mit Drehknopf;
Einstellung der Bildschärfe mit Drehknopf;
Anschluss für Bildmonitor (Zubehör).Tontechnik:
Magnetton-Aufnahme- und Wiederabe auf 2 Tonspuren für Mono bzw. Duoplay;
Duoplay-Automatik bei Wiederabe;
Spur 1 regelt die Lautstärke der Spur 2 und umgekehrt;
Automatische Tonaussteuerung bei Aufnahme mit Pegel-Wahlschalter.
- Net weight (2.2 lb = 1 kg)
- 8 kg / 17 lb 9.9 oz (17.621 lb)
- Author
- Model page created by Jürgen Küting. See "Data change" for further contributors.
