• Country
• Germany

• Manufacturer / Brand
• Metrawatt, BBC Goerz Metrawatt, ABB Metrawatt; Nürnberg

• Year
• 1982

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 142814

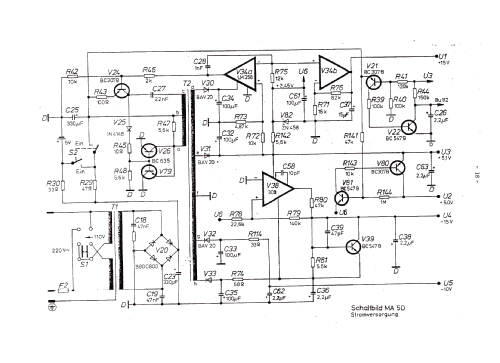

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / 110; 220 / 4 x 1,2 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

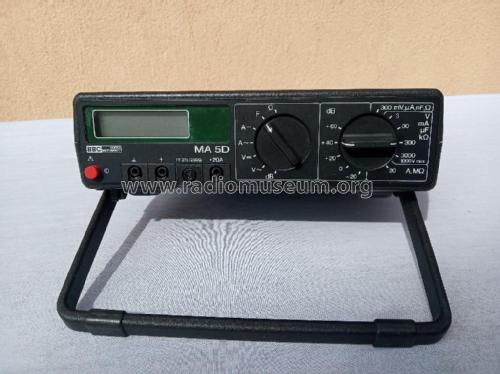

• Model: Metravo MA 5D - Metrawatt, BBC Goerz Metrawatt

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 290 x 210 x 85 mm / 11.4 x 8.3 x 3.3 inch

• Notes

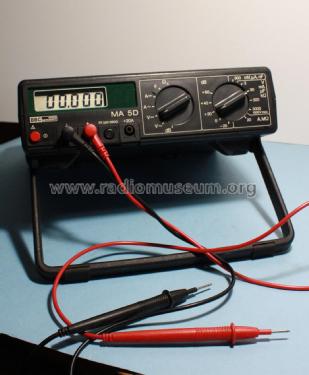

• Vielfachmessgerät Metravo MA 5D.
  Innenwiderstand 10 MΩ, Frequenzbereich 15 Hz bis 20 kHz, Anzeigeart LCD 4½, Anzeigenhöhe 12,6 mm, Kapazitäts- und Pegelmessung, Stromversorgung durch NiCd-Akkus.

• Net weight (2.2 lb = 1 kg)
• 1.7 kg / 3 lb 11.9 oz (3.744 lb)

• Price in first year of sale
• 1,124.00 DM

• Mentioned in
• Funkschau (Heft 15 Juli 1982)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
