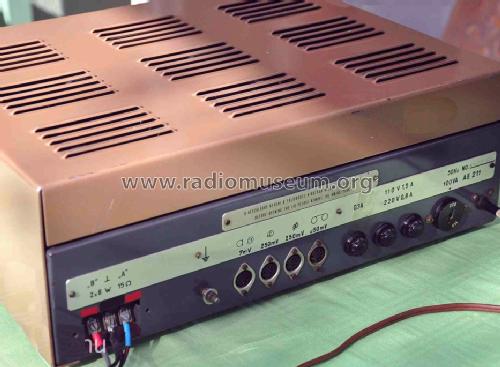

Qualiton Stereo AE 211

Qualiton Stereo AE 211; Budapesti (ID = 537668) Ampl/Mixer
Qualiton Stereo AE 211; Budapesti (ID = 1671179) Ampl/Mixer Qualiton Stereo AE 211; Budapesti (ID = 970959) Ampl/Mixer
Qualiton Stereo AE 211; Budapesti (ID = 447614) Ampl/Mixer Qualiton Stereo AE 211; Budapesti (ID = 970958) Ampl/Mixer
Qualiton Stereo AE 211; Budapesti (ID = 970960) Ampl/Mixer Qualiton Stereo AE 211; Budapesti (ID = 970961) Ampl/Mixer
Qualiton Stereo AE 211; Budapesti (ID = 1671180) Ampl/Mixer Qualiton Stereo AE 211; Budapesti (ID = 1671181) Ampl/Mixer
Qualiton Stereo AE 211; Budapesti (ID = 1671182) Ampl/Mixer Qualiton Stereo AE 211; Budapesti (ID = 1671183) Ampl/Mixer
Use red slider bar for more.
Qualiton Stereo AE 211; Budapesti (ID = 1671179) Ampl/Mixer
Budapesti: Qualiton Stereo AE 211 [Ampl/Mixer] ID = 1671179 933x338
Select picture or schematic to display from thumbnails on the right and click for download.
For model Qualiton Stereo AE 211, Budapesti Elektroakusztikai Gyár (BEAG), Budapest:
Thanks for Mr.Summasys, Hungary, Miskolc and Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Hungary
Manufacturer / Brand:  Budapesti Elektroakusztikai Gyár (BEAG), Budapest
Year: 1965–1967 Category: Audio Amplifier or -mixer

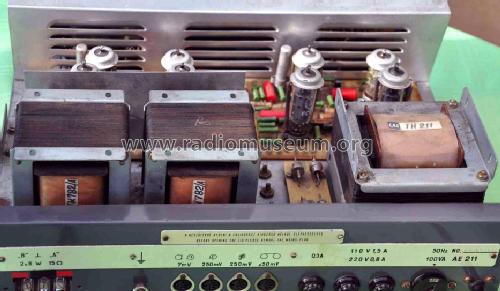

Valves / Tubes 8: EF86 EF86 ECC82 ECC82 ECL86 ECL86 ECL86 ECL86
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 16 W (unknown quality)
from Radiomuseum.org Model: Qualiton Stereo AE 211 - Budapesti Elektroakusztikai Gy
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 400 x 130 x 330 mm / 15.7 x 5.1 x 13 inch
Notes Stereo, 2×8W, 30-15 000Hz.
Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Price in first year of sale 7'510.00 HUF
Mentioned in Technika, 1966/05
Literature/Schematics (1) RÁVILL Árjegyzék, 1967.
Literature/Schematics (4) Műszaki Élet, 1965.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
