• Country
• Hungary

• Manufacturer / Brand
• BEAG - Budapesti Elektroakusztikai Gyár; Budapest

• Year
• 1972

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 326562

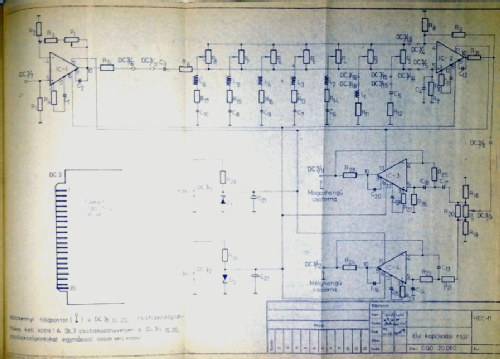

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Loudspeaker + integr.Amplifier

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

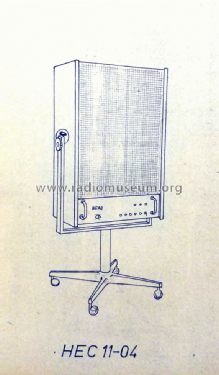

• Model: Aktiv Box HEC 11-04 - BEAG - Budapesti

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 540 x 820 x 320 mm / 21.3 x 32.3 x 12.6 inch

• Net weight (2.2 lb = 1 kg)
• 41 kg / 90 lb 4.9 oz (90.308 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
