• Country
• Hungary

• Manufacturer / Brand
• BEAG - Budapesti Elektroakusztikai Gyár; Budapest

• Year
• 1980 ?

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 171443

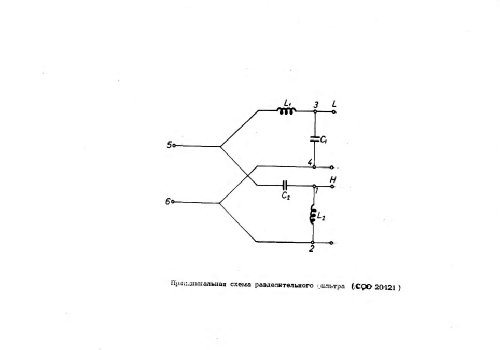

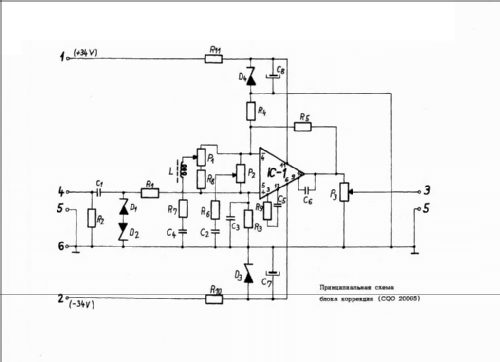

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Loudspeaker + integr.Amplifier

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Aktiv Box HEC-12-07 - BEAG - Budapesti

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 540 x 320 x 820 mm / 21.3 x 12.6 x 32.3 inch

• Notes

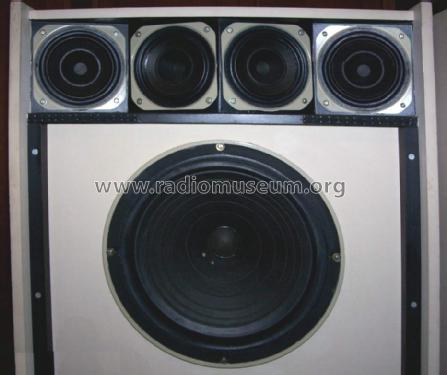

• 40-16000 Hz, Amplifier EBE-5302. Speaker: 1× HX301-4, 4× HX125-4.

• Net weight (2.2 lb = 1 kg)
• 37 kg / 81 lb 8 oz (81.498 lb)

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
