Audio Amplifier KEP 5001

Audio Amplifier KEP 5001; Budapesti (ID = 1615855) Ampl/Mixer Audio Amplifier KEP 5001; Budapesti (ID = 1615856) Ampl/Mixer
Use red slider bar for more.
Audio Amplifier KEP 5001; Budapesti (ID = 1615855) Ampl/Mixer
Budapesti: Audio Amplifier KEP 5001 [Ampl/Mixer] ID = 1615855 933x417
Select picture or schematic to display from thumbnails on the right and click for download.
For model Audio Amplifier KEP 5001, Budapesti Elektroakusztikai Gyár (BEAG), Budapest:
Thanks for Mr.Perneky Sándor, Verőce Rádiómúzeum, and Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Hungary
Manufacturer / Brand:  Budapesti Elektroakusztikai Gyár (BEAG), Budapest
Year: 1976 ?? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 100 W (unknown quality)
from Radiomuseum.org Model: Audio Amplifier KEP 5001 - Budapesti Elektroakusztikai Gy
Material Metal case
Shape Rack
Dimensions (WHD) 480 x 132 x 220 mm / 18.9 x 5.2 x 8.7 inch
Net weight (2.2 lb = 1 kg) 16 kg / 35 lb 3.9 oz (35.242 lb)

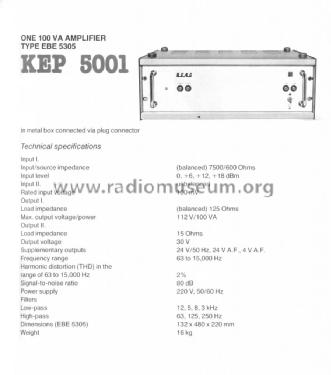

Mentioned in -- Original prospect or advert

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
