Dinamikus mikrofon MD102 M-T

Dinamikus mikrofon MD102 M-T; Budapesti (ID = 1621393) Microphone/PU
Dinamikus mikrofon MD102 M-T; Budapesti (ID = 1621394) Microphone/PU Dinamikus mikrofon MD102 M-T; Budapesti (ID = 1621395) Microphone/PU
Dinamikus mikrofon MD102 M-T; Budapesti (ID = 1621396) Microphone/PU Dinamikus mikrofon MD102 M-T; Budapesti (ID = 1621397) Microphone/PU
Dinamikus mikrofon MD102 M-T; Budapesti (ID = 1621398) Microphone/PU
Use red slider bar for more.
Dinamikus mikrofon MD102 M-T; Budapesti (ID = 1621394) Microphone/PU

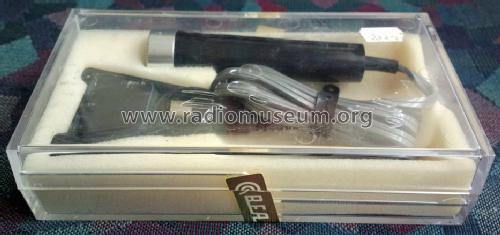

Budapesti: Dinamikus mikrofon MD102 M-T [Microphone/PU] ID = 1621394 933x439
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dinamikus mikrofon MD102 M-T, Budapesti Elektroakusztikai Gyár (BEAG), Budapest:
Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Budapesti Elektroakusztikai Gyár (BEAG), Budapest
Year: 1987 Category: Microphone or Pick-up element
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Dinamikus mikrofon MD102 M-T - Budapesti Elektroakusztikai Gy
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 26 x 26 x 120 mm / 1 x 1 x 4.7 inch
Notes

70-16 000 Hz. Impedance: 5 kOhm.

Net weight (2.2 lb = 1 kg) 0.8 kg / 1 lb 12.2 oz (1.762 lb)

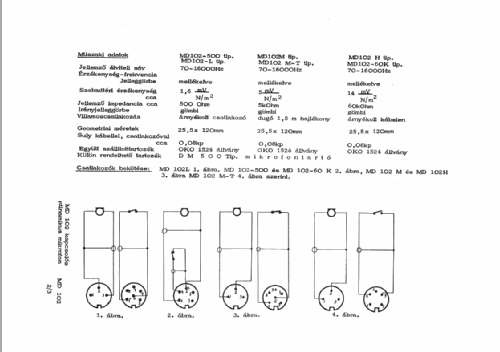

Mentioned in -- Original-techn. papers.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
