Dynamic Microphone MD7-1HL EAG

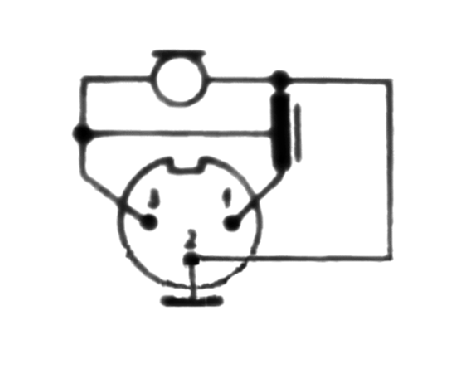

Dynamic Microphone MD7-1HL EAG; Budapesti (ID = 1773325) Microphone/PU

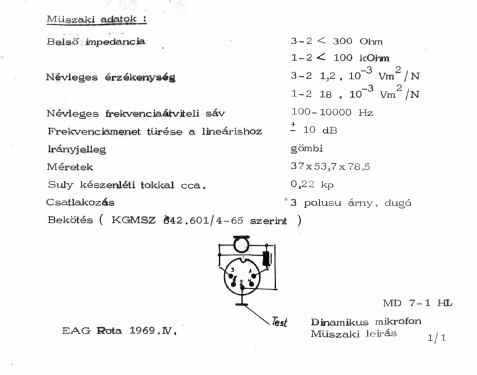

Dynamic Microphone MD7-1HL EAG; Budapesti (ID = 2271722) Microphone/PU
Dynamic Microphone MD7-1HL EAG; Budapesti (ID = 1043239) Microphone/PU Dynamic Microphone MD7-1HL EAG; Budapesti (ID = 1043241) Microphone/PU
Dynamic Microphone MD7-1HL EAG; Budapesti (ID = 1043242) Microphone/PU Dynamic Microphone MD7-1HL EAG; Budapesti (ID = 1043243) Microphone/PU
Dynamic Microphone MD7-1HL EAG; Budapesti (ID = 1482137) Microphone/PU Dynamic Microphone MD7-1HL EAG; Budapesti (ID = 1773223) Microphone/PU

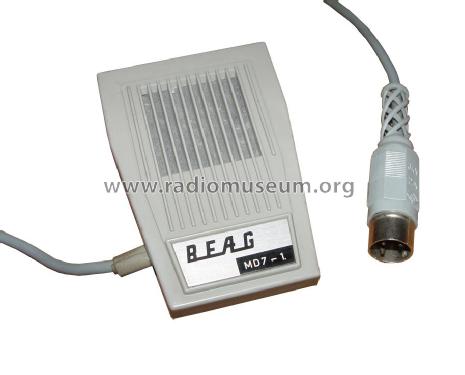

Dynamic Microphone MD7-1HL EAG; Budapesti (ID = 1899186) Microphone/PU Dynamic Microphone MD7-1HL EAG; Budapesti (ID = 2203570) Microphone/PU
Dynamic Microphone MD7-1HL EAG; Budapesti (ID = 2271723) Microphone/PU Dynamic Microphone MD7-1HL EAG; Budapesti (ID = 2271724) Microphone/PU
Use red slider bar for more.
Dynamic Microphone MD7-1HL EAG; Budapesti (ID = 1043239) Microphone/PU
Budapesti: Dynamic Microphone MD7-1HL EAG [Microphone/PU] ID = 1043239 900x814
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dynamic Microphone MD7-1HL EAG, Budapesti Elektroakusztikai Gyár (BEAG), Budapest:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Budapesti Elektroakusztikai Gyár (BEAG), Budapest
Year: 1966–1974 Category: Microphone or Pick-up element
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Dynamic Microphone MD7-1HL EAG - Budapesti Elektroakusztikai Gy
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 55 x 79 x 35 mm / 2.2 x 3.1 x 1.4 inch
Net weight (2.2 lb = 1 kg) 0.220 kg / 0 lb 7.8 oz (0.485 lb)
Source of data - - Data from my own collection
Mentioned in -- Original-techn. papers.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
