• Year
  • 1967
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 237385

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 5
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Dry Batteries / 9 × 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 2.5 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org

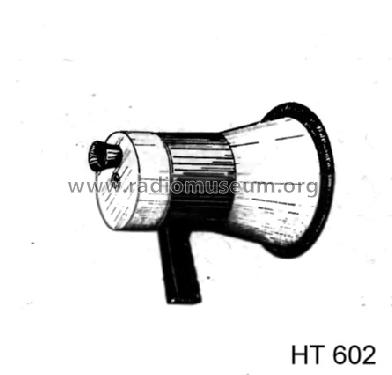

  • Model: Hangtölcsér HT 602 - Budapesti Elektroakusztikai Gy
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 300 x 300 x 225 mm / 11.8 x 11.8 x 8.9 inch
  • Notes
  • 80-10000 Hz.

  • Price in first year of sale
  • 3'960.00 HUF
  • Literature/Schematics (2)
  • Csabai Dániel, Hangerősítő Kapcsolások, Bp. 1976
  • Literature/Schematics (4)
  • Híradástechnikai cikkek kereskedelmi árjegyzéke, BP. 1967
