• Country
• Hungary

• Manufacturer / Brand
• BEAG - Budapesti Elektroakusztikai Gyár; Budapest

• Year
• 1974 ??

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 248791

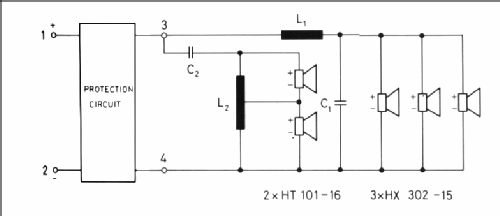

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 5 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Hi-Fi Box HOX-08 - BEAG - Budapesti

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 1201 x 380 x 350 mm / 47.3 x 15 x 13.8 inch

• Net weight (2.2 lb = 1 kg)
• 45 kg / 99 lb 1.9 oz (99.119 lb)

• Mentioned in

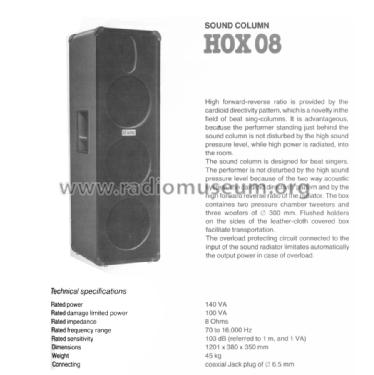

• -- Original-techn. papers.

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
