Mixer Amplifier AE-430

Mixer Amplifier AE-430; Budapesti (ID = 915156) Ampl/Mixer Mixer Amplifier AE-430; Budapesti (ID = 915158) Ampl/Mixer
Mixer Amplifier AE-430; Budapesti (ID = 915159) Ampl/Mixer Mixer Amplifier AE-430; Budapesti (ID = 915160) Ampl/Mixer
Use red slider bar for more.

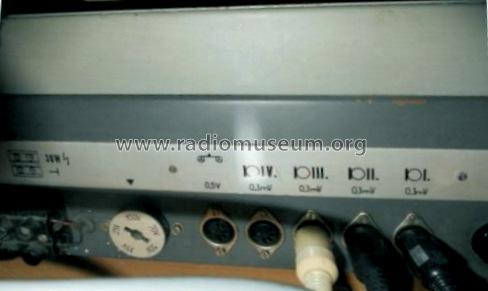

Mixer Amplifier AE-430; Budapesti (ID = 915156) Ampl/Mixer
Budapesti: Mixer Amplifier AE-430 [Ampl/Mixer] ID = 915156 400x341
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mixer Amplifier AE-430, Budapesti Elektroakusztikai Gyár (BEAG), Budapest:
Thanks for Mr.Kun László, Hungary!

Country:  Hungary
Manufacturer / Brand:  Budapesti Elektroakusztikai Gyár (BEAG), Budapest
Year: 1968 Category: Audio Amplifier or -mixer
Valves / Tubes 6: ECC808 ECC808 ECC808 ECC808 EL503 EL503
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 30 W (unknown quality)
from Radiomuseum.org Model: Mixer Amplifier AE-430 - Budapesti Elektroakusztikai Gy
Material Metal case
Shape Tablemodel, with any shape - general.
Notes Uout: 100 V.
Source of data - - Data from my own collection

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.



All listed radios etc. from Budapesti Elektroakusztikai Gyár (BEAG), Budapest
Here you find 335 models, 314 with images and 119 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
