Mixer Amplifier AKT-400

Mixer Amplifier AKT-400; Budapesti (ID = 750361) Ampl/Mixer Mixer Amplifier AKT-400; Budapesti (ID = 750362) Ampl/Mixer
Mixer Amplifier AKT-400; Budapesti (ID = 993279) Ampl/Mixer Mixer Amplifier AKT-400; Budapesti (ID = 993280) Ampl/Mixer
Mixer Amplifier AKT-400; Budapesti (ID = 993281) Ampl/Mixer Mixer Amplifier AKT-400; Budapesti (ID = 993282) Ampl/Mixer
Mixer Amplifier AKT-400; Budapesti (ID = 993283) Ampl/Mixer Mixer Amplifier AKT-400; Budapesti (ID = 1615830) Ampl/Mixer
Mixer Amplifier AKT-400; Budapesti (ID = 1615831) Ampl/Mixer
Use red slider bar for more.

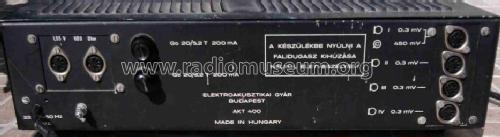

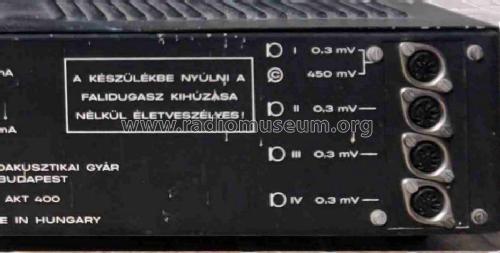

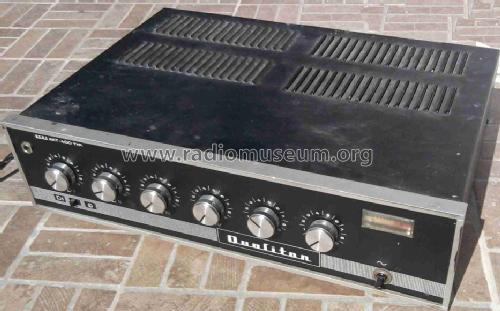

Mixer Amplifier AKT-400; Budapesti (ID = 750361) Ampl/Mixer
Budapesti: Mixer Amplifier AKT-400 [Ampl/Mixer] ID = 750361 640x300
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mixer Amplifier AKT-400, Budapesti Elektroakusztikai Gyár (BEAG), Budapest:
Thanks for Mr.Janka Jenö Hungary!

Country:  Hungary
Manufacturer / Brand:  Budapesti Elektroakusztikai Gyár (BEAG), Budapest
Year: 1980 ?? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 16:
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Mixer Amplifier AKT-400 - Budapesti Elektroakusztikai Gy
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 410 x 110 x 320 mm / 16.1 x 4.3 x 12.6 inch
Net weight (2.2 lb = 1 kg) 4.6 kg / 10 lb 2.1 oz (10.132 lb)
Source of data -- Collector info (Sammler)

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.



All listed radios etc. from Budapesti Elektroakusztikai Gyár (BEAG), Budapest
Here you find 335 models, 314 with images and 119 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
