Speaker Box HD 032

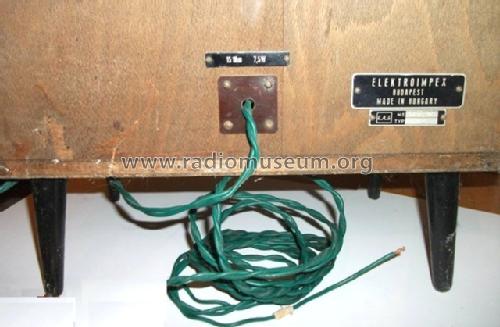

Speaker Box HD 032; Budapesti (ID = 1680948) Speaker-P Speaker Box HD 032; Budapesti (ID = 1680949) Speaker-P
Speaker Box HD 032; Budapesti (ID = 1680950) Speaker-P Speaker Box HD 032; Budapesti (ID = 1680951) Speaker-P
Speaker Box HD 032; Budapesti (ID = 1680952) Speaker-P Speaker Box HD 032; Budapesti (ID = 1628152) Speaker-P
Speaker Box HD 032; Budapesti (ID = 1628153) Speaker-P
Use red slider bar for more.
Speaker Box HD 032; Budapesti (ID = 1680948) Speaker-P
Budapesti: Speaker Box HD 032 [Speaker-P] ID = 1680948 644x996
Select picture or schematic to display from thumbnails on the right and click for download.
For model Speaker Box HD 032, Budapesti Elektroakusztikai Gyár (BEAG), Budapest:
Thanks for Mr.Cerka 25, Hungary,Békéscsaba and Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Hungary
Manufacturer / Brand:  Budapesti Elektroakusztikai Gyár (BEAG), Budapest
Year: 1967 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker
Power out
from Radiomuseum.org Model: Speaker Box HD 032 - Budapesti Elektroakusztikai Gy
Material Wooden case
Dimensions (WHD) 400 x 770 x 240 mm / 15.7 x 30.3 x 9.4 inch
Notes

Maximum output 10 W.

The measures as specified by the source "Híradástechnikai cikkek árjegyzéke, BP. 1967" appear to be wrong.

Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Price in first year of sale 1'650.00 HUF
Literature/Schematics (2) Híradástechnikai cikkek árjegyzéke, BP. 1967
Literature/Schematics (4) Rádiótechnika Évkönyv, 1968.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
