Speaker HX 100-32

Speaker HX 100-32; Budapesti (ID = 1395789) Speaker-P Speaker HX 100-32; Budapesti (ID = 1395790) Speaker-P
Speaker HX 100-32; Budapesti (ID = 1395791) Speaker-P
Use red slider bar for more.
Speaker HX 100-32; Budapesti (ID = 1395789) Speaker-P

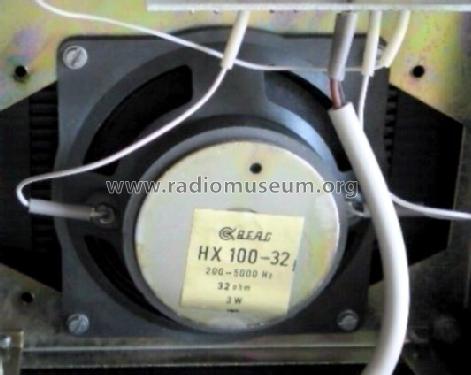

Budapesti: Speaker HX 100-32 [Speaker-P] ID = 1395789 533x424
Select picture or schematic to display from thumbnails on the right and click for download.
For model Speaker HX 100-32, Budapesti Elektroakusztikai Gyár (BEAG), Budapest:
Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Hungary
Manufacturer / Brand:  Budapesti Elektroakusztikai Gyár (BEAG), Budapest
Year: 1970 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Speaker HX 100-32 - Budapesti Elektroakusztikai Gy
Material Metal case
Shape Chassis only or for «building in»
Notes

32 Ohm / 3 W. 200-5000 Hz.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
