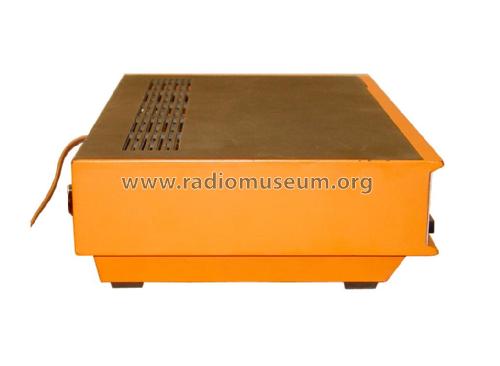

Stereo Amplifier AET-210

Stereo Amplifier AET-210; Budapesti (ID = 553631) Ampl/Mixer Stereo Amplifier AET-210; Budapesti (ID = 553636) Ampl/Mixer
Stereo Amplifier AET-210; Budapesti (ID = 553633) Ampl/Mixer Stereo Amplifier AET-210; Budapesti (ID = 553632) Ampl/Mixer
Stereo Amplifier AET-210; Budapesti (ID = 553634) Ampl/Mixer Stereo Amplifier AET-210; Budapesti (ID = 553635) Ampl/Mixer
Stereo Amplifier AET-210; Budapesti (ID = 553637) Ampl/Mixer Stereo Amplifier AET-210; Budapesti (ID = 553638) Ampl/Mixer
Stereo Amplifier AET-210; Budapesti (ID = 707311) Ampl/Mixer Stereo Amplifier AET-210; Budapesti (ID = 1615844) Ampl/Mixer
Use red slider bar for more.
Stereo Amplifier AET-210; Budapesti (ID = 553631) Ampl/Mixer
Budapesti: Stereo Amplifier AET-210 [Ampl/Mixer] ID = 553631 933x208
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Amplifier AET-210, Budapesti Elektroakusztikai Gyár (BEAG), Budapest:
Thanks for Mr.Gömör Géza Budapest,Hungary! More info: .oldradio.tesla.hu/szetszedtem/229aet210/erosito.htm

Country:  Hungary
Manufacturer / Brand:  Budapesti Elektroakusztikai Gyár (BEAG), Budapest
Year: 1968 ?? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 14:
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 20 W (unknown quality)
from Radiomuseum.org Model: Stereo Amplifier AET-210 - Budapesti Elektroakusztikai Gy
Material Various materials
Shape Book-shelf unit.
Dimensions (WHD) 210 x 78 x 346 mm / 8.3 x 3.1 x 13.6 inch
Notes ICs: 1
Out: 2× 10 W, 4-16 Ω.
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Source of data -- Collector info (Sammler)

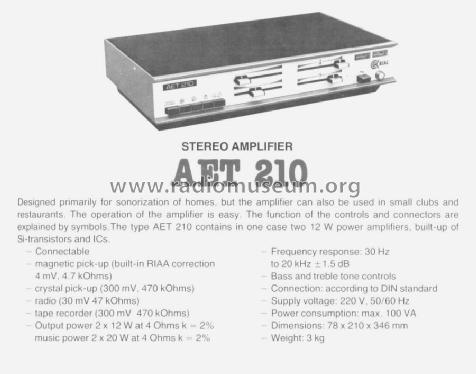

Mentioned in -- Original-techn. papers.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.



All listed radios etc. from Budapesti Elektroakusztikai Gyár (BEAG), Budapest
Here you find 335 models, 314 with images and 119 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
