Baby Grand Crystal Model R-1

Baby Grand Crystal Model R-1; Beaver Machine & (ID = 45389) Crystal Baby Grand Crystal Model R-1; Beaver Machine & (ID = 189273) Crystal
Baby Grand Crystal Model R-1; Beaver Machine & (ID = 189274) Crystal Baby Grand Crystal Model R-1; Beaver Machine & (ID = 189275) Crystal
Baby Grand Crystal Model R-1; Beaver Machine & (ID = 1246097) Crystal Baby Grand Crystal Model R-1; Beaver Machine & (ID = 1441559) Crystal
Baby Grand Crystal Model R-1; Beaver Machine & (ID = 1441560) Crystal Baby Grand Crystal Model R-1; Beaver Machine & (ID = 1441561) Crystal
Baby Grand Crystal Model R-1; Beaver Machine & (ID = 1441562) Crystal Baby Grand Crystal Model R-1; Beaver Machine & (ID = 1441563) Crystal
Use red slider bar for more.
Baby Grand Crystal Model R-1; Beaver Machine & (ID = 45389) Crystal
Beaver Machine &: Baby Grand Crystal Model R-1 [Crystal] ID = 45389 400x271
Select picture or schematic to display from thumbnails on the right and click for download.
For model Baby Grand Crystal Model R-1, Beaver Machine & Tool Co.; Newark, New Jersey

Country:  United States of America (USA)
Manufacturer / Brand:  Beaver Machine & Tool Co.; Newark, New Jersey
Year: 1922–1925 Category: Detector-Radio (Crystal or diode, without tubes/transistors)
Main principle Crystal or Solid State Detector
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Baby Grand Crystal Model R-1 - Beaver Machine & Tool Co.;
Material Various materials
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 4 x 1.6 x 2.4 inch / 102 x 41 x 61 mm
Notes Two tuning dials (tapped ind.); Lit.: Crystal Clear
Price in first year of sale 10.00 $
Collectors' prices
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Mentioned in September 1925, Electrical Record Supplement magazine page 32

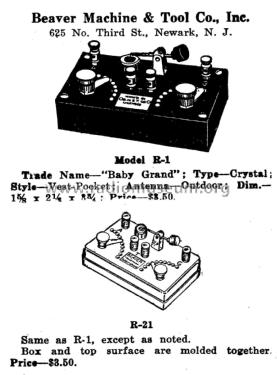

Literature/Schematics (4) June 1922 Electrical Record magazine page 12


All listed radios etc. from Beaver Machine & Tool Co.; Newark, New Jersey
Here you find 2 models, 2 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
