Europa LMKU Serie K ab 520001; Becker, Max Egon, (ID = 2382369) Car Radio
Becker, Max Egon,: Europa LMKU Serie K ab 520001 [Car Radio] ID = 2382369 1351x531
Select picture or schematic to display from thumbnails on the right and click for download.
For model Europa LMKU Serie K ab 520001, Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim

Country:  Germany
Manufacturer / Brand:  Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim
Year: 1973–1975 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 13:
Main principle Superheterodyne (common); ZF/IF 460 kHz
Tuned circuits 9 AM circuit(s)     14 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Europa LMKU Serie K ab 520001 - Becker, Max Egon,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 180 x 42 x 117 mm / 7.1 x 1.7 x 4.6 inch
Notes 14 Dioden. Anschlüsse für TA/TB, 1 oder 2 LS (5 Ohm), Automatikantenne, KW-Adapter, Verkehrsfunkadapter. 1974/75 auch in Ausführung MU, LM, M lieferbar.
Net weight (2.2 lb = 1 kg) 1.4 kg / 3 lb 1.3 oz (3.084 lb)
Source of data Handbuch VDRG 1973/1974 / Radiokatalog Band 2, Ernst Erb
Mentioned in Handbuch VDRG 1974/1975

Model page created by Jürgen Stichling. See "Data change" for further contributors.



All listed radios etc. from Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim
Here you find 299 models, 210 with images and 156 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Becker, Max Egon,: Europa LMKU Serie K ab 520001
Threads: 1 | Posts: 1
Hits: 2519     Replies: 0
becker: LMKU; Europa
Giovanni Carenini
07.Sep.09
  1

Dear All,

I purchased a Becker Europa LMKU (pn J562509).

I tried to contact the Becker service by email but no answers from them...
Anyone have the schematic diagram and service instruction?

Thanks in advance for any help!!

Giovanni

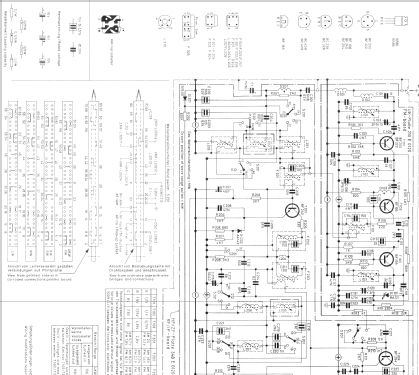

Schematic found on ebay...

Thank you

Giovanni
