• Country
• Germany

• Manufacturer / Brand
• Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim

• Year
• 1972 ?

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 236767

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 9 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 5 W (7 W max.)

• Material
• Metal case

• from Radiomuseum.org
• Model: Europa MU [ab H 7..] - Becker, Max Egon,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 180 x 42 x 117 mm / 7.1 x 1.7 x 4.6 inch

• Notes

• Becker Europa MU Serie H im 42 mm hohen Einblock-Gehäuse.

  Stationsdrucktasten 2x AM, 3x FM,
  Wellenbereiche AM 510-1630 kHz,  FM 87-108 MHz, mit AFC.

  Anschlüsse für 1 oder 2 Lautsprecher, Automatik-Antenne, TA/TB nach DIN 45322 und Kurzwellenadapter Reims.

  Leerlauf-Stromaufnahme 0,21 A, bei Vollaussteuerung 0,85 A

  Circuit diagrams valid from serial number  J 753 485

• Net weight (2.2 lb = 1 kg)
• 1.3 kg / 2 lb 13.8 oz (2.863 lb)

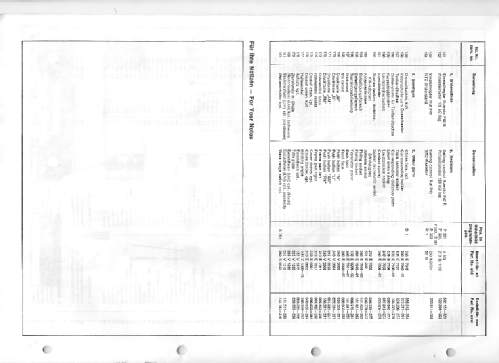

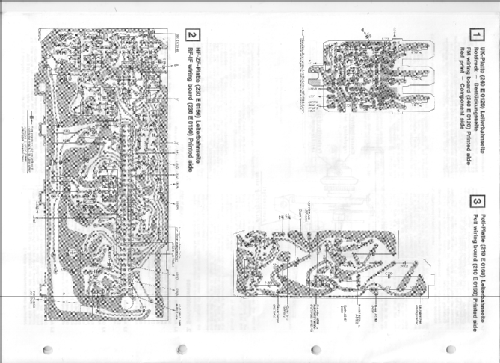

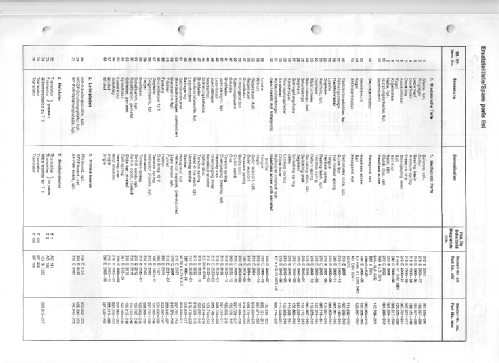

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Vicente Lagunas-Villanueva. See "Data change" for further contributors.
